What is Reverse Engineering?

The concept of reverse engineering has different meanings according to occupational groups.
In the manufacturing sector, where the design information of a manufactured product is not available,
the design information is recovered for the purpose of reproducing or improving the product.

Blue #1 Icon

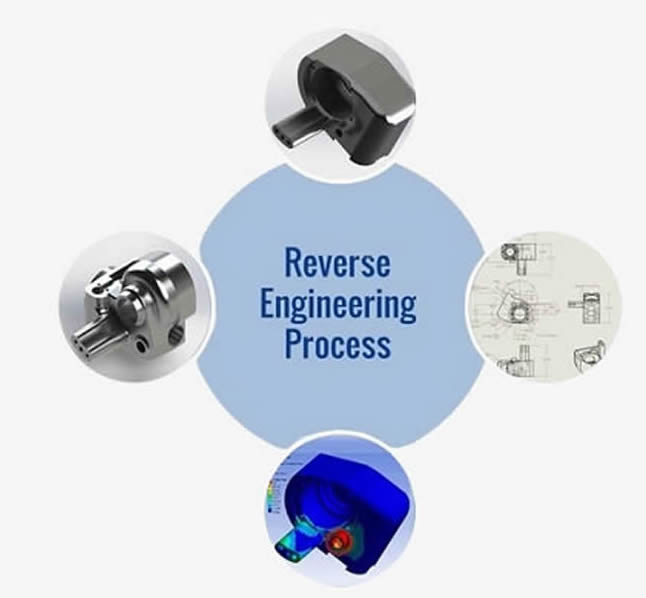

How does the system work?

• The physical model is obtained in the digital environment by using three-dimensional digitization or scanning tools.
• A number of correction operations are applied on the obtained model.

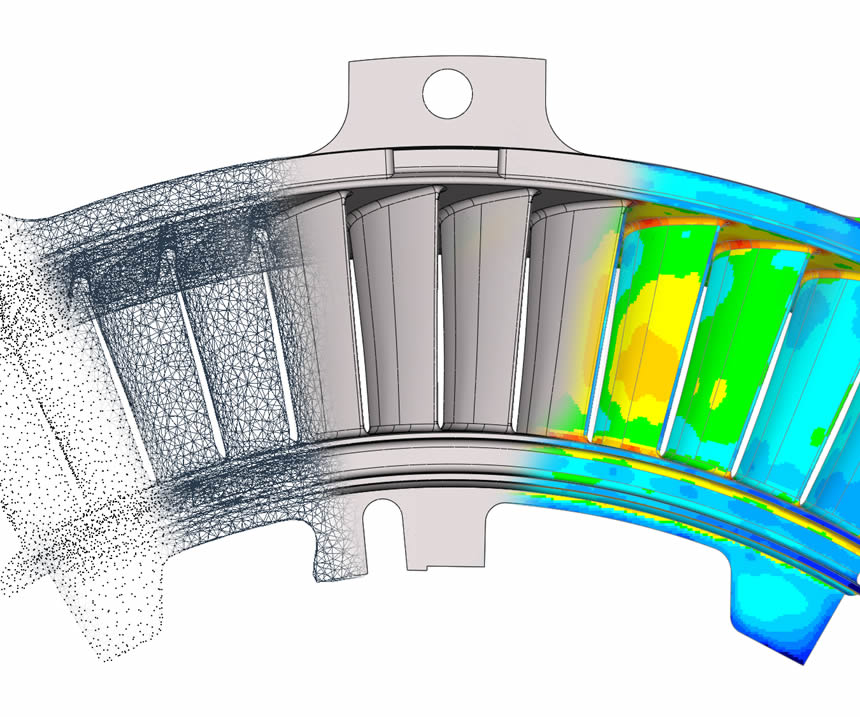

• Corrected point cloud and curves Surfaces are obtained by using reverse engineering modules in CAD software.
• The final CAD data is obtained after the necessary final corrections are made on the obtained surface models.

Blue #1 Icon

Advantages of Reverse Engineering

• Obtaining design information of an existing part
• Treatment of damaged parts
• Examining and increasing model sensitivity
• Examination of competing products
• Checking castings
• Inspection and repair of deformed molds

Blue #1 Icon

Which Devices are Used in Reverse Engineering?

Contact Measurement;

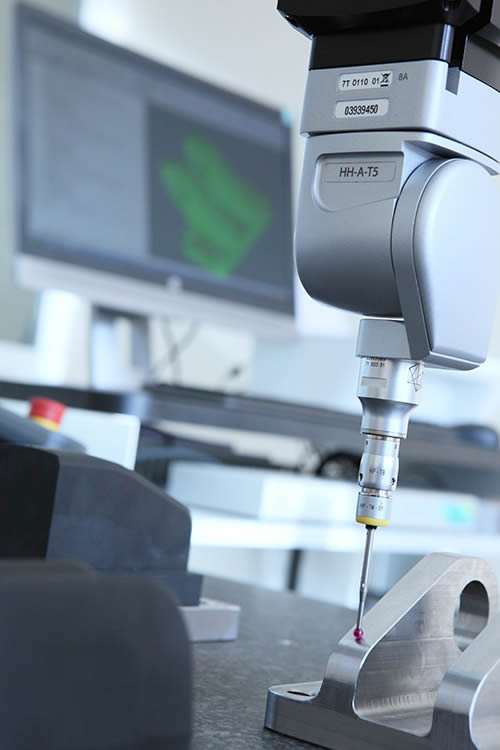

*Coordinate Measurement Machine, CMM
All kinds of dimensional measurements and tolerances such as parallelism, perpendicularity and ovality can be easily queried.
Non-Contact Measurement;
3D Laser and Optical Scanners
Optical and Laser scanners have the ability to generate geometric data by making 3D shots of complex shapes with special cameras.
